Description

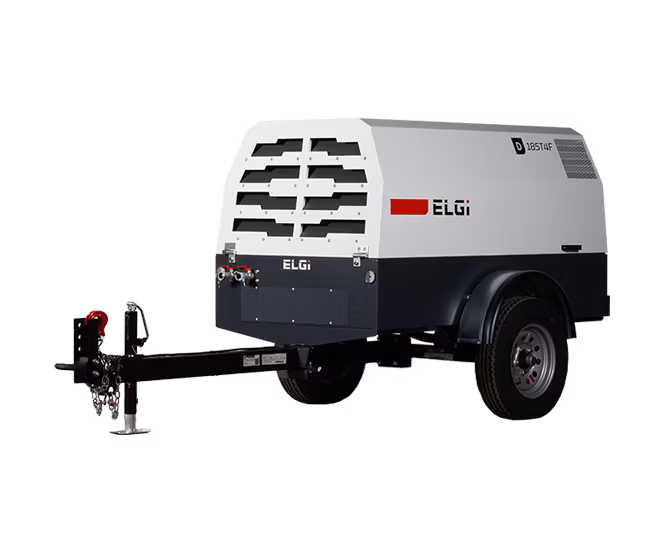

Tow behind portable compressors - D185T4F The ELGi D185T4F tow behind portable air compressor, designed to be durable, fuel efficient, quiet and reliable, gives you 185 cfm @ 100 psi using the Kohler KDI diesel engine. The new Kohler design doesn’t require costly DPF filtration systems to achieve Tier 4 final EPA requirements. All this is backed by a 3-year Kohler warranty and a 5-year-unlimited hour air end warranty provided by ELGi! Available in trailer or skid mount version, the 185 cfm portable air compressors are versatile and can be used in various applications such as construction, sand blasting, and more.
Specifications
Manufacturer
ELGi
Model
D185T4F
Year
2026
Category
Compressors
Subcategory
Portable Compressors
Operating Pressure
100 psi (150 psi with Dual Pressure Option)
Free Air Delivery
185 cfm (150 cfm with Dual Pressure Option)
Minimum Working Pressure
73 psi
Drive System
Engine-Airend Direct Drive
Oil Cooling Capacity
2.75 gal
Outlet Valves
2 x 3/4”
Battery Capacity
12V 100Ah 790A
Fuel Tank Capacity
23 gal
Fuel Consumption
1.6 gph
Dry Weight with Running Gear
2,160 lbs
Dry Weight with Skid Configuration
2,256 lbs
Dimensions With Running Gear
L-124” W-53” H-54”
Dimensions With Skid Configuration
L-84" W-47" H-52"

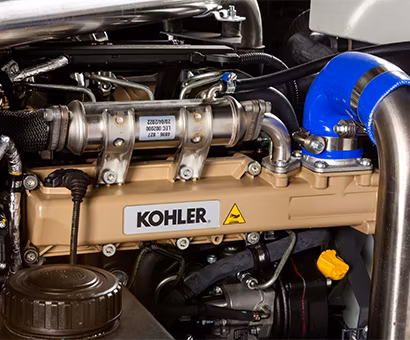

Engine Make
KOHLER
Engine Type
KDI 1903 TCR
Engine System
4 Stroke - High Pressure Common Rail
Displacement
1903 cc
No Cylinders
3
Aspiration
Turbo Intercooler
Max Engine Power @ 2600 RPM
49 HP
Max Engine Speed
2600 RPM
Min Engine Speed
1700 RPM
Cooling System
Water
Cooling System Capacity
3.70 gal
Lubrication System
Oil
Lubrication System Capacity
2.57 gal
Max Ambient Temperature
122°F
Min Working Temperature
14°F
