Description

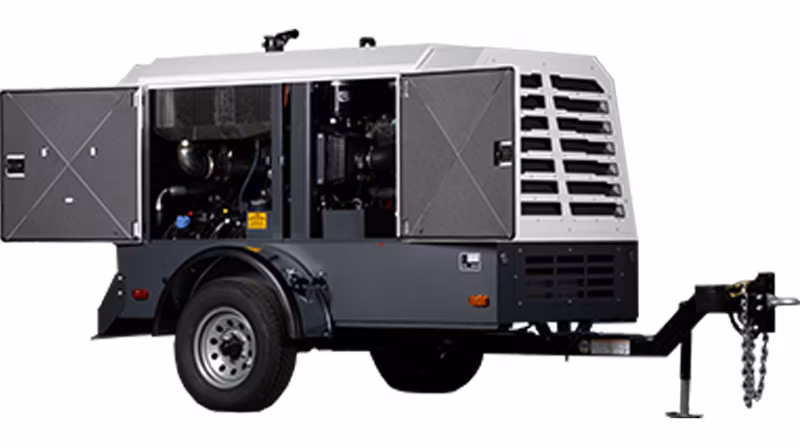

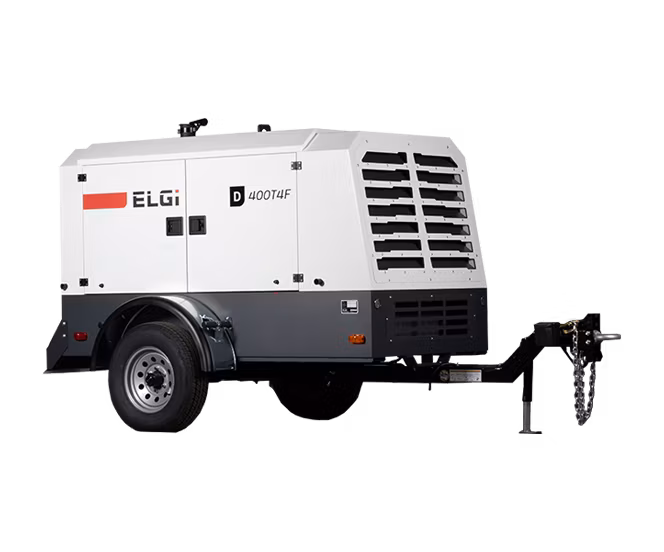

ELGi D400T4F
Specifications
Manufacturer
ELGi
Model
D400T4F
Year
2026
Category
Compressors
Subcategory
Towable Air Compressors
Operating Pressure
100 psi - 150 psi Switchable
Free Air Delivery
375 cfm
Minimum Working Pressure
73 psi
Drive System
Engine-Airend Direct Drive
Oil Cooling Capacity
7.79 gal
Outlet Valves
2 X 3/4” + 1 X 2”
Battery Capacity
2 X 12V 74Ah 680A
Fuel Tank Capacity
53 gal
Fuel Consumption
4 gph
Dry Weight with Running Gear
4,950 lbs
Dry Weight with Skid Configuration
4,345 lbs
Engine Make
CUMMINS
Engine Type
QSF 3.8
Engine System
4 Stroke - High Pressure Common Rail
Displacement
3800 cc
No Cylinders
4
Aspiration
Turbo Intercooler
Max Engine Power @ 2200 RPM
130 HP
Max Engine Speed
2200 RPM
Min Engine Speed
1200 RPM
Cooling System
Water
Cooling System Capacity
5.81 gal
Lubrication System
Oil
Lubrication System Capacity
4.12 gal
Max Ambient Temperature
122°F
Min Working Temperature
14°F
Dimensions with Running Gear
L-168” W-76” H-78”
Dimensions with Skid Configuration
L-112” W-54” H-72”
