Description
One of the most versatile machines in the industry: these lightweight self-propelled lifts have a working height of 51 feet and low ground pressure for sensitive surfaces such as landscaping, concrete and interior uses. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.
Specifications
Manufacturer
Haulotte
Model
45 XA
Year
2026
Category
Aerial Work Platforms
Subcategory
Lightweight Self-Propelled Booms
Engine
26.5 hp gas
Lift capacity
500 lb
Turntable rotation
350° non-continuous
Jib - Vertical Motion
150° (+70 / -80)
Drive speed
4 mph (max)
Gradeability
45%
Weight
5,200 lb

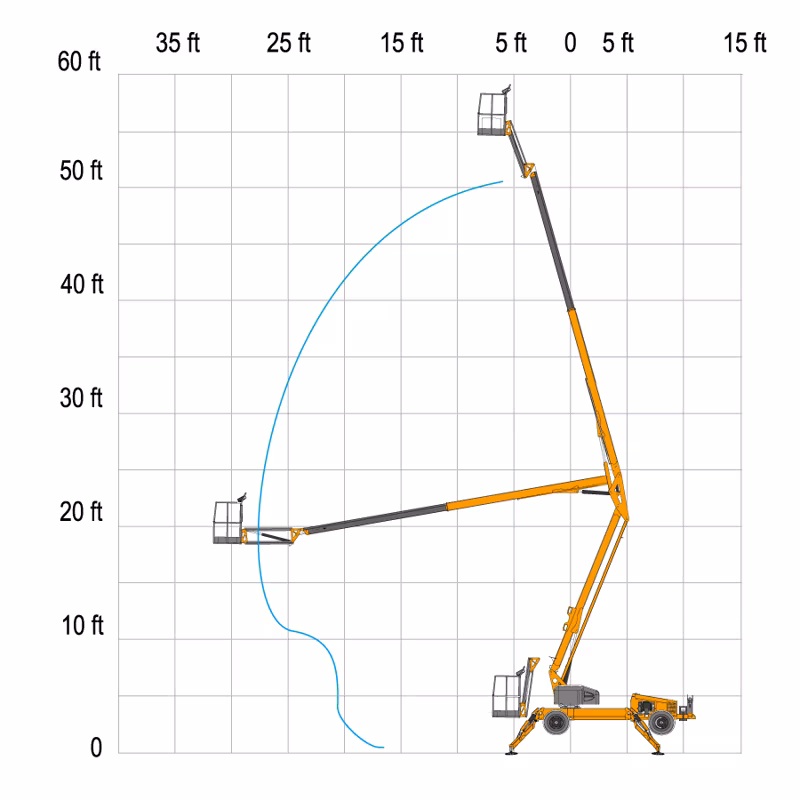

Working height
51 ft
Platform height
45 ft
Horizontal outreach (from centerline)
27 ft
Horizontal outreach (from edge of footpad)
21 ft
Up and over height
20 ft 9 in
Length - stowed
18 ft 2 in
Width stowed
5 ft 6 in
Height stowed
6 ft 7 in
Wheelbase
8 ft 9 in
Ground clearance
6 in
Platform size
5 ft x 2 ft 6 in
Outrigger footprint
12 ft 4 in x 11 ft 4 in
Jib - length
4 ft 3 in
Turning radius - inside (2WS)
10 ft
Turning radius - inside (4WS)
5 ft 4 in
Tire size
26 x 12 Bar lug
Batteries
4 x 6V 260 Amp-hr
