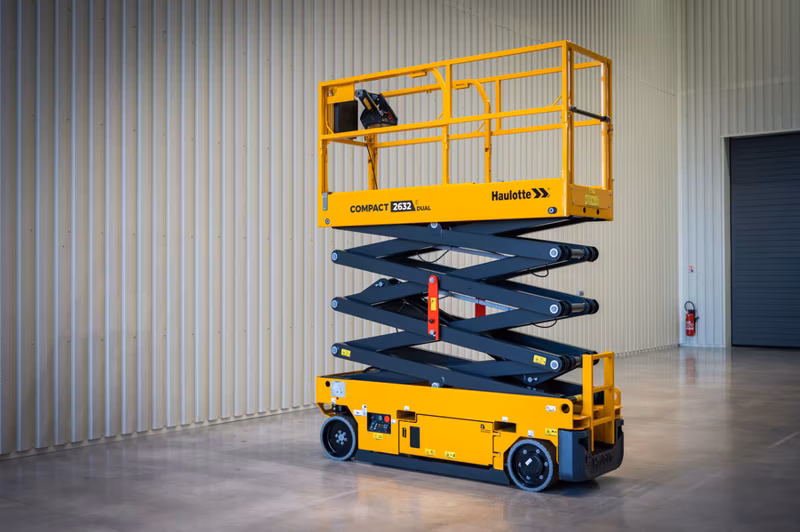

Description
Compact scissor lifts deliver unparalleled strength and adapt perfectly to the constraints of your worksites. Each subassembly is optimized, from the chassis to the platform and scissor arms. Compact scissor platforms guarantee high productivity and optimum uptime. Compact DUAL models now feature a flexible In/Out mode, giving operators the ability to choose the right operating environment directly from the upper control box.Compact DUAL models now feature a flexible In/Out mode, giving operators the ability to choose the right operating environment directly from the upper control box.
Specifications
Manufacturer
Haulotte
Model
Compact 2632 E Dual
Year
2026
Category
Aerial Work Platforms
Subcategory
Scissor Lifts
Lift capacity - inside
550 lb (2 pers)
Lift capacity - outside
550 lb (1 pers)
Lift capacity - extension
265 lb
Drive speed
0.43 - 0,93 - 2.61 mph
Gradeability
25 %
Tilt (longitudinal / lateral)
3.5° / 1.5
Non-marking tires
15 x 5
Hydraulic system capacity
3 gal
Weight
4,763 lb

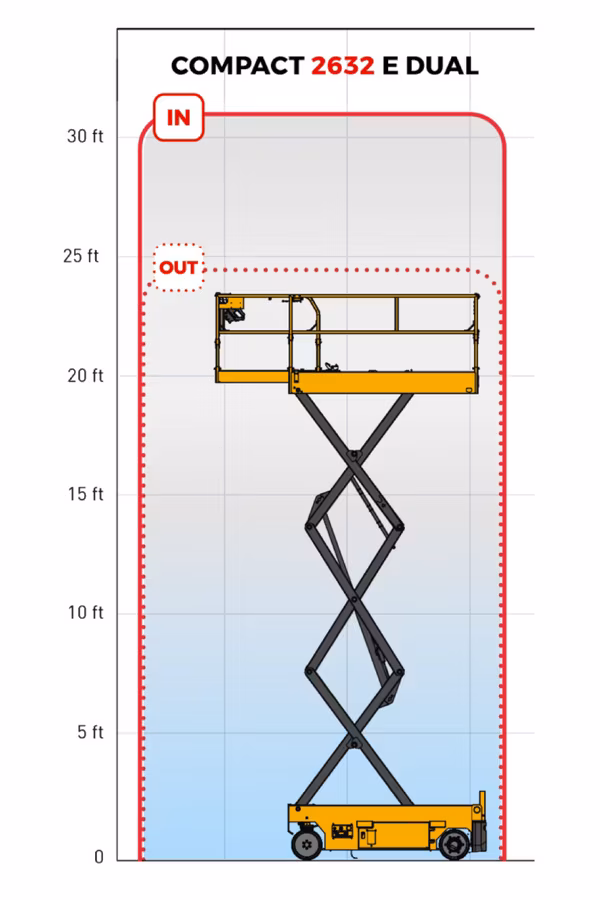

Working height - indoor
31 ft 7 in
Overall width
32 in
Platform height
17 ft 1 in
Platform height - indoor
25 ft 7 in
Max drive working height - indoor
25 ft 7 in
Platform length - outside
7 ft 10 in
Platform length - extended
10 ft 11 in
Extension length
37 in
Platform width - outside
32 in
Height - stowed
7 ft 9 in
Height - guardrails lowered
6 ft 4 in
Length
8 ft 2 in
Wheelbase
6 ft 1 in
Ground clearance
5 in
Ground clearance - pothole guards deployed
1 in
Turning radius - outside
6 ft 9 in
Working height - outdoor
23 ft 1 in
Platform height - outdoor
16 ft 5 in
Max drive working height - outdoor
16 ft 5 in
Batteries
24 V - 225 Ah (C20)
