Description
One of the most versatile machines in the industry: these lightweight self-propelled lifts have a working height of 61 feet and low ground pressure for sensitive surfaces such as landscaping, concrete and interior uses. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.
Specifications
Manufacturer
Haulotte
Model
55 XA
Year
2026
Category
Aerial Work Platforms
Subcategory
Lightweight Self-Propelled Booms
Engine
26.5 hp gas
Lift capacity
500 lb
Turntable rotation
350° non-continuous
Jib - Vertical Motion
150° (+70 / -80)
Drive speed
4 mph (max)
Gradeability
45 %
Weight
6,000 lb

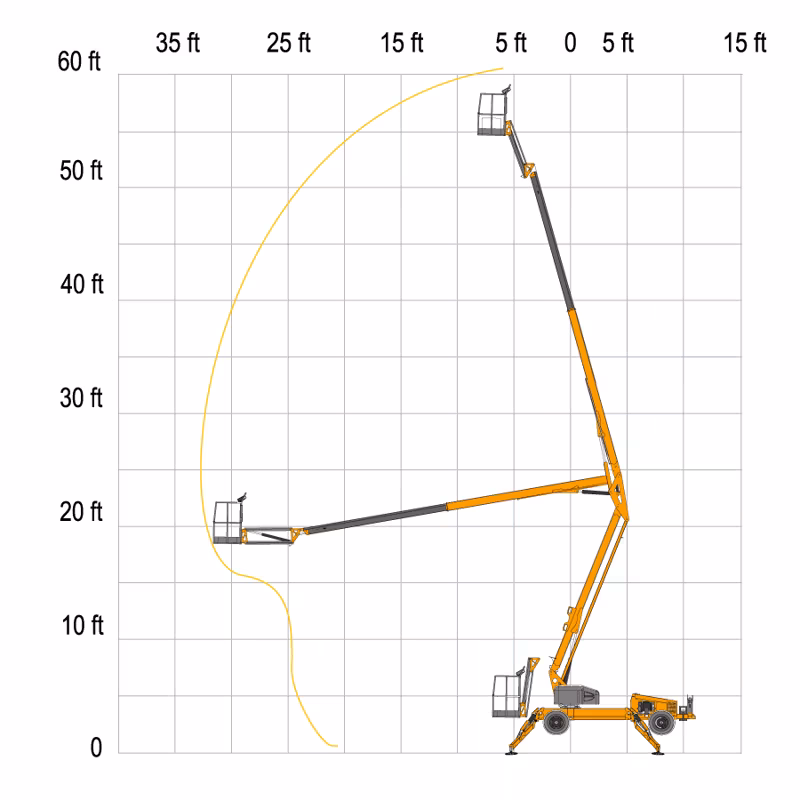

Working height
61 ft 3 in
Platform height
55 ft 3 in
Horizontal outreach (from centerline)
33 ft 5 in
Horizontal outreach (from edge of footpad)
27 ft 4 in
Up and over height
23 ft 1 in

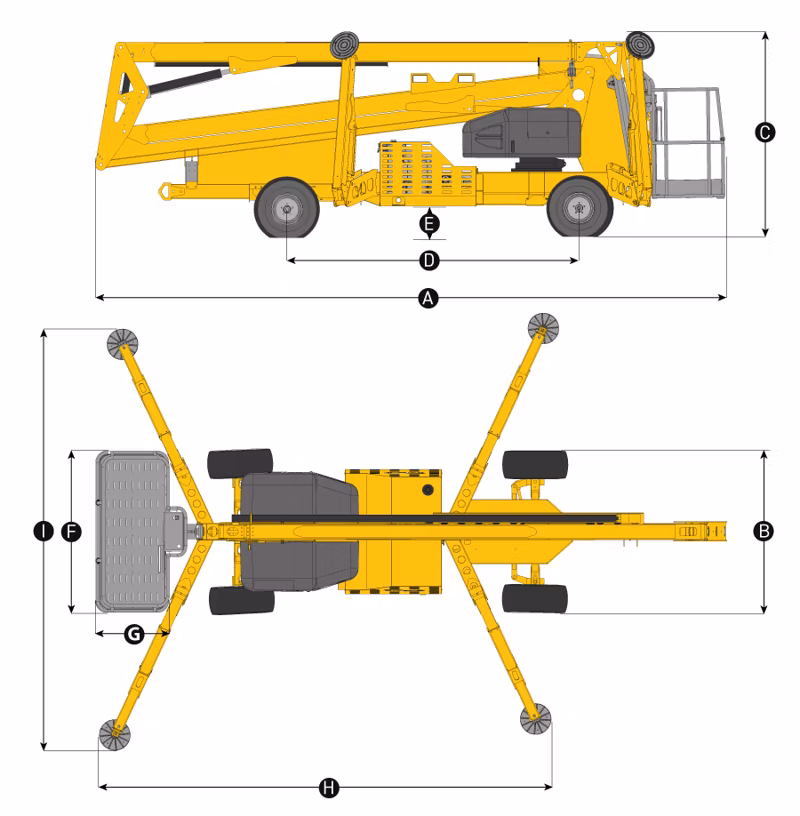

Length - stowed
21 ft 2 in
Width stowed
5 ft 8 in
Height stowed
6 ft 9 in
Wheelbase
10 ft 1 in
Ground clearance
10 in
Platform size
5 ft x 2 ft 6 in
Outrigger footprint
13 ft 11 in x 12 ft 9 in
Jib - length
4 ft 3 in
Turning radius - inside (2WS)
11 ft 4 in
Turning radius - inside (4WS)
6 ft 8 in
Tire size
26 x 12 Bar lug
Batteries
4 x 6V 260 Amp-hr
