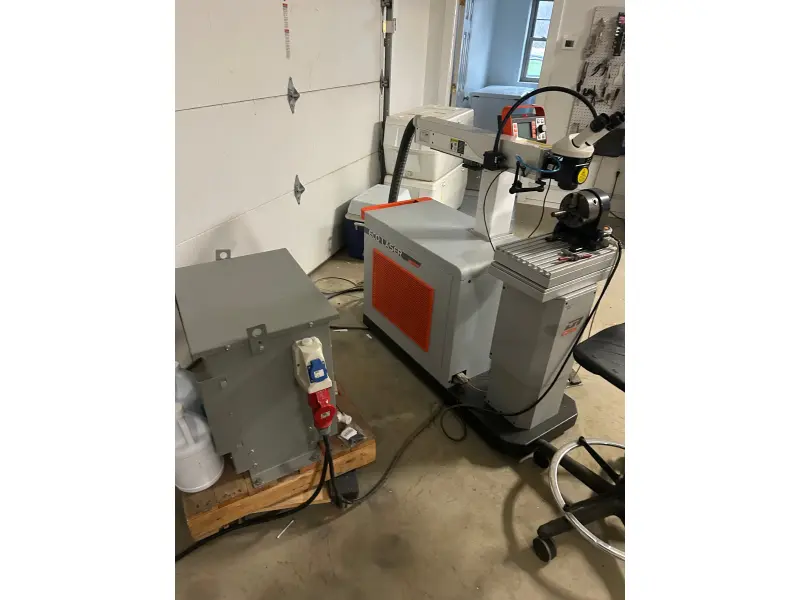

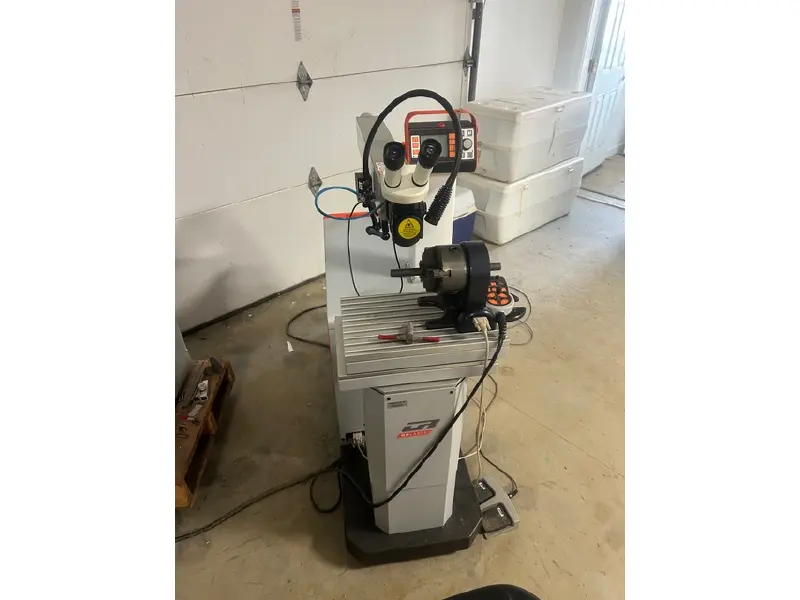

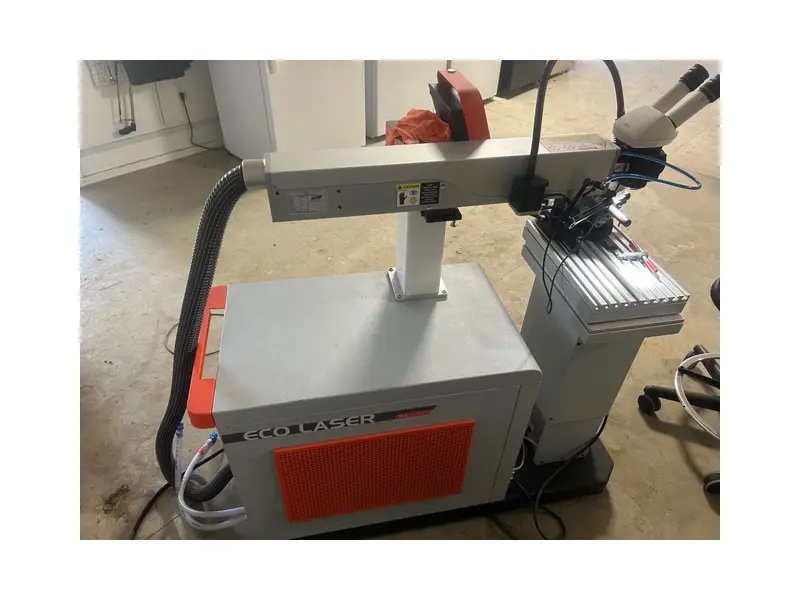

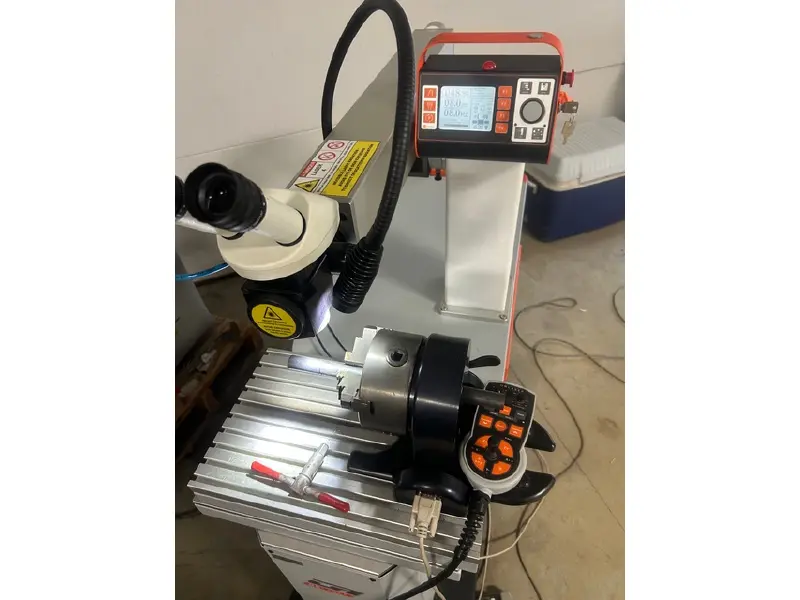

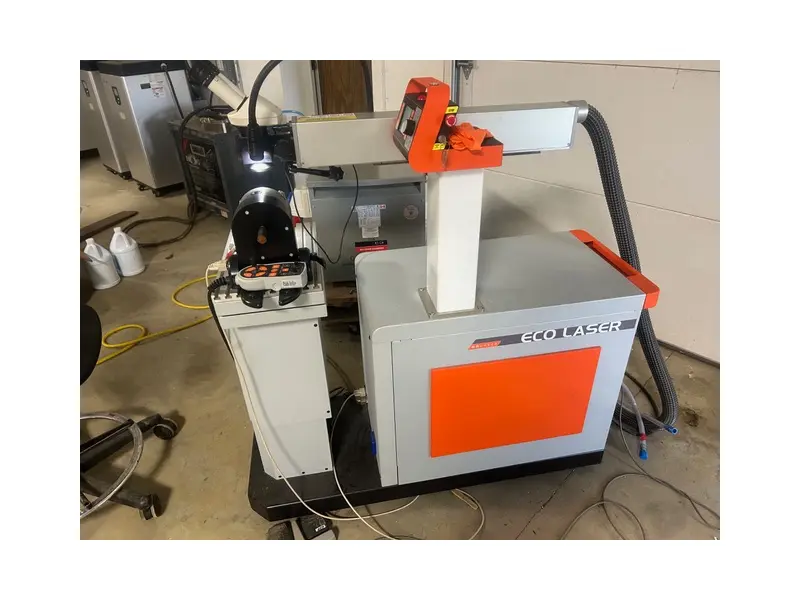

2017 OR Laser Eco Laser 4600

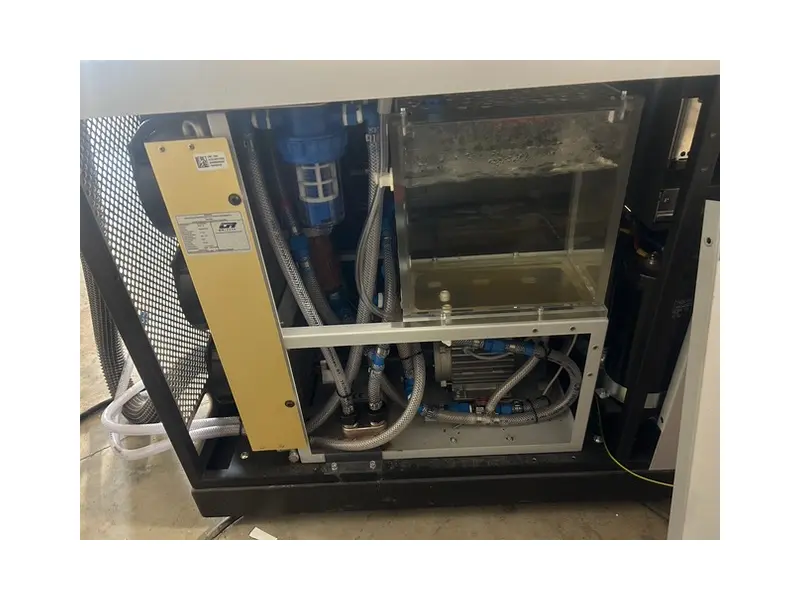

2017 OR Laser Eco Laser 4600 welder. Total Pulse Count 3,955,357 at time of consignment. Serviced by manufacturer prior to consignment. New heat exchanger, laser rod, laser lamp, mirrors and lens, reflectors. Water cooling system also serviced and cleaned, and filters replaced.

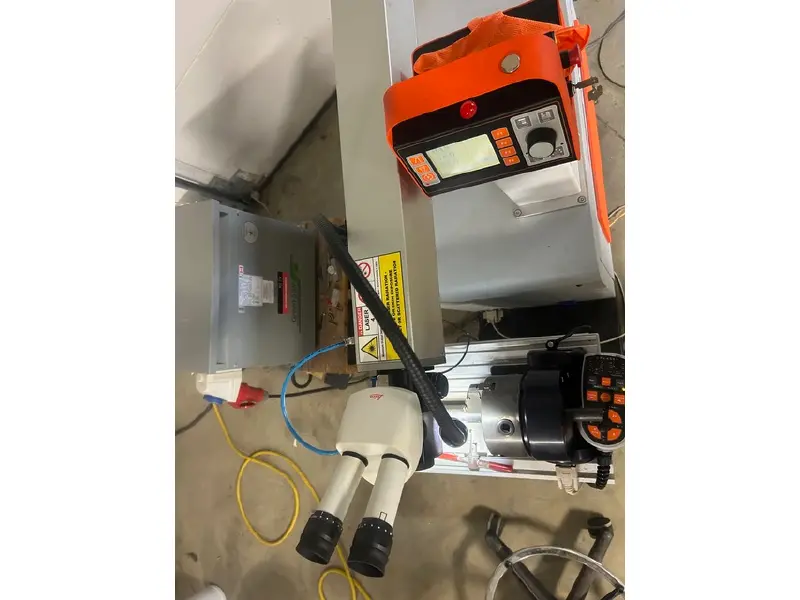

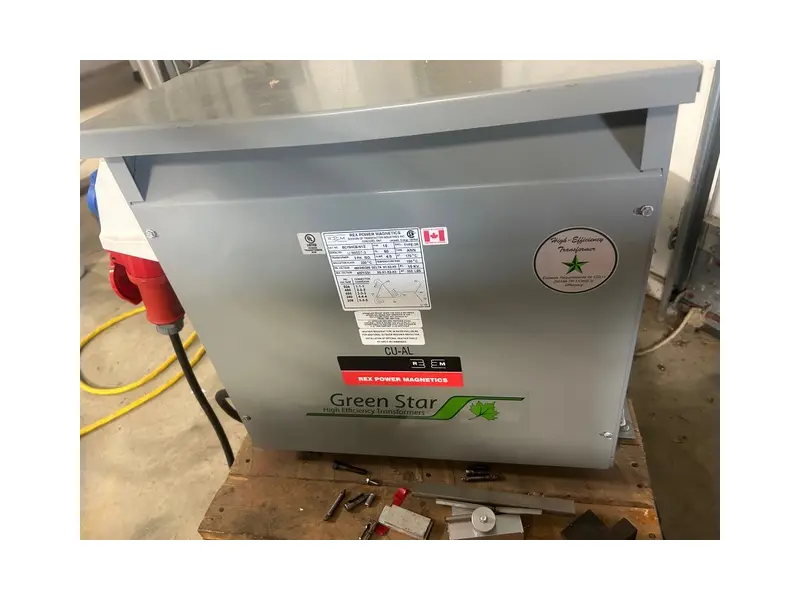

Specs: Laser type: YAG (pulsed); Average output power: 160 W; Pulse energy: 80 J; Pulse duration: from 0.4 ns (min) to 20 ns (max); Spot diameter: 0.2 mm (min) to 2 mm (max); Work area / travel (table axes): X-axis: 200 mm; Y-axis: 120 mm; Z-axis (table travel): 400 mm; Positioning speed (table): 0.5–15 mm/s; Machine dimensions: Width 472 mm, Height 1270 mm, Length 1160 mm; Weight: 190 kg (net); Power supply: 3-phase, 3×400 V, max 3×16 A, 50/60 Hz; Axes control: 4-axis control; table movement (X/Y/Z) + joystick operation; Protective gas supply: Yes (gas supply via solenoid valve); Typical application / suitability: Stationary laser welding machine designed for small series or individual parts — tool- and mould-making, precision parts, small batches, etc.

* All Iron Exchange equipment is sold on consignment.

* City and state vary by unit.

* Equipment may be seen in-person by appointment.

* Iron Exchange is happy to help arrange Shipping, Financing, Virtual Demos, and 3rd Party Inspections where applicable.

(Ref #16659-PRP)
