Description
Compact 14 DUAL electric scissor lift deliver unparalleled strength and adapt perfectly to the constraints of your worksites. Each subassembly is optimized, from the chassis to the platform and scissor arms. Compact 14 DUAL electric scissor lift guarantee high productivity and optimum uptime. The Compact DUAL models now feature a flexible In/Out mode, giving operators the ability to choose the right operating environment directly from the upper control box.
Specifications
Manufacturer
Haulotte
Model
Compact 3947 E Dual
Year
2026
Category
Aerial Work Platforms
Subcategory
Scissor Lifts
Lift capacity - inside
700 lb (3 pers)
Lift capacity - outside
700 lb (1 pers)
Lift capacity - extension
265 lb
Drive speed
0.43 - 2.61 mph
Gradeability
25 %
Tilt (longitudinal / lateral)
3.5° / 1.5°
Non-marking tires
15 x 5
Hydraulic system capacity
4 gal
Weight
6,747 lb

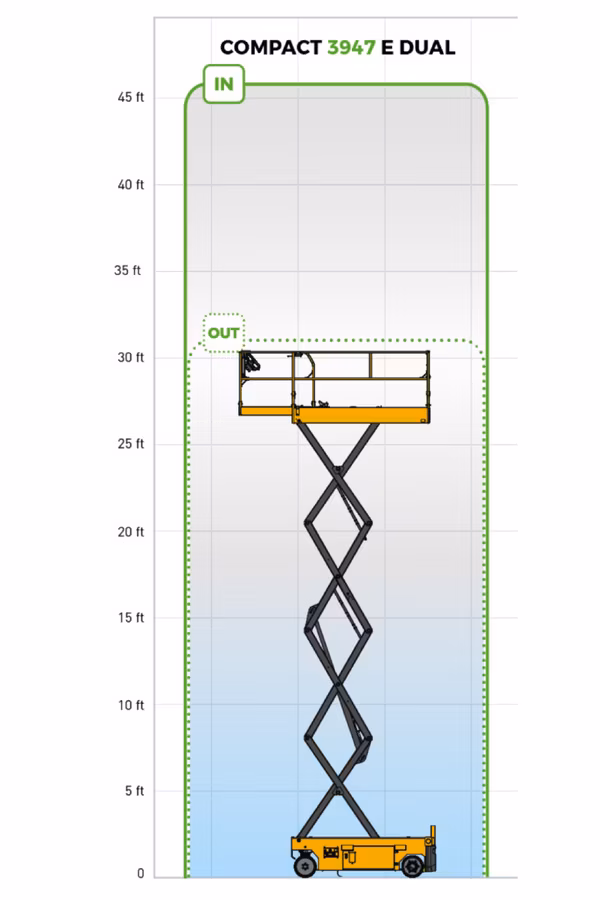

Working height - indoor
44 ft 7 in
Overall width
47 in
Platform height - indoor
38 ft 7 in
Driveable at full height up to
25 ft 7 in
Max drive working height - indoor
38 ft 7 in
Platform length - outside
7 ft 10 in
Platform length - extended
10 ft 11 in
Extension length
37 in
Platform width - outside
47 in
Height - stowed
8 ft 11 in
Height - guardrails lowered
6 ft 8 in
Length
8 ft 2 in
Wheelbase
6 ft 1 in
Ground clearance
5 in
Ground clearance - pothole guards deployed
1 in
Turning radius - outside
6 ft
Working height - outdoor
31 ft 7 in
Batteries
24 V - 225 Ah (C20)
