Description

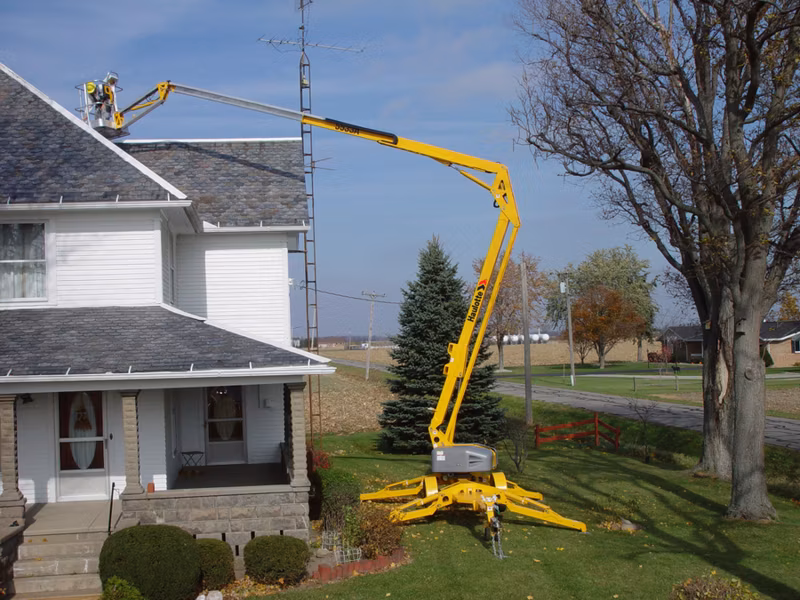

With a working height of 61 feet and useable both indoors and outdoors, the 5533 A trailer mounted boom is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design make them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.
Specifications
Manufacturer
Haulotte
Model
5533 A
Year
2026
Category
Aerial Work Platforms
Subcategory
Articulated & Telescopic Trailers
Power source
4 x 6 V 245 amp-hr
Lift capacity
500 lb
Turntable rotation
350° non-continuous
Jib - Vertical Motion
150° (+ 70 / - 80)
Tow speed rating
65 mph
Leveling capability
12.5 °
Tongue weight (no options)
335 lb
Weight (no options)
4,800 lb

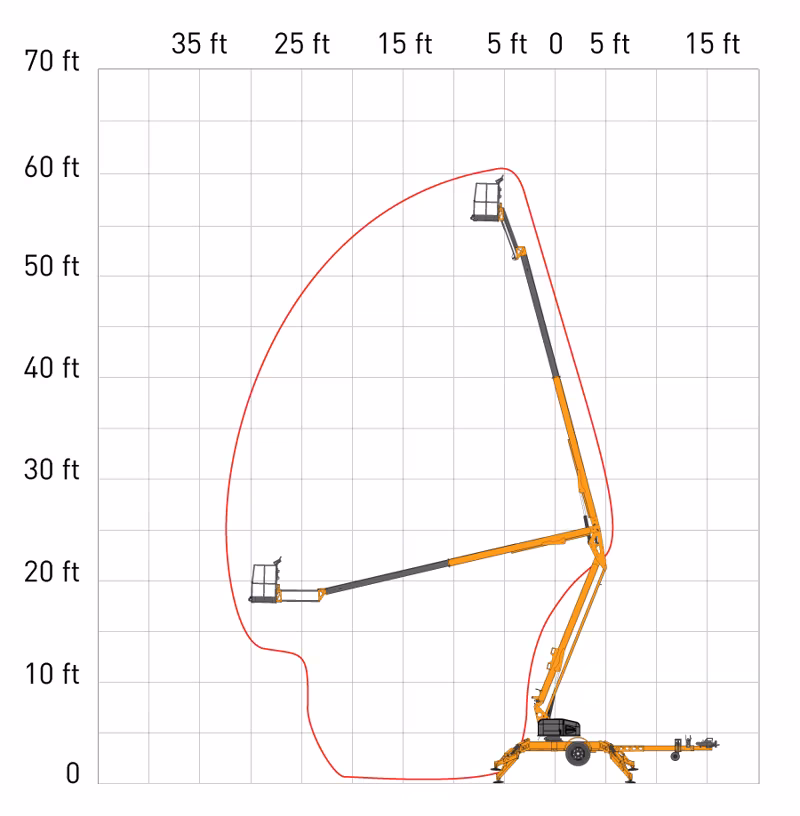

Working height
61 ft 3 in
Platform height
55 ft 3 in
Horizontal outreach (from centerline)
33 ft 5 in
Horizontal outreach (from edge of footpad)
27 ft 4 in
Up and over height
23 ft 1 in

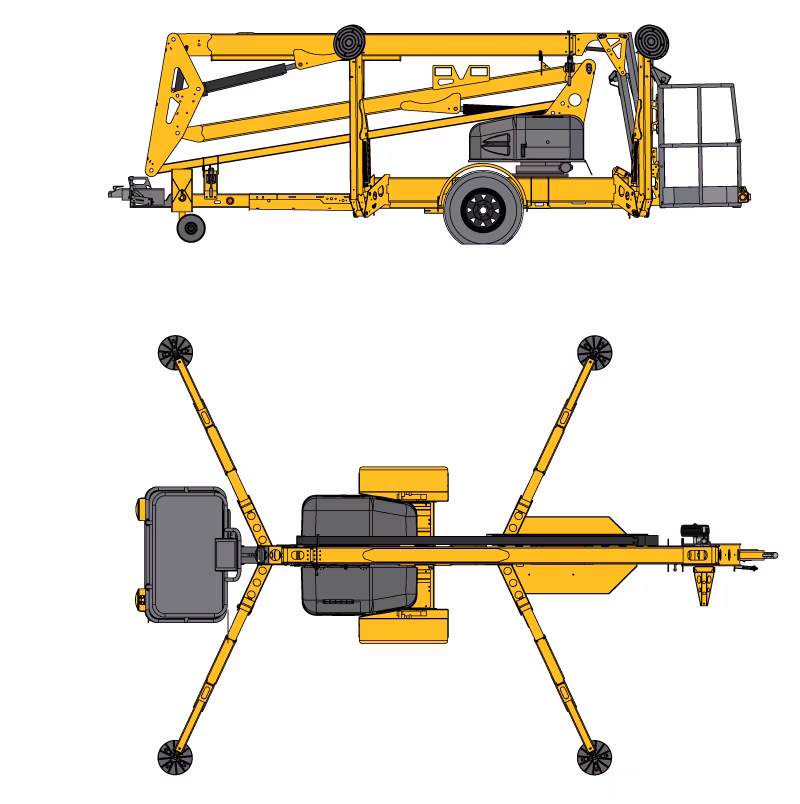

Length - stowed
23 ft 8 in
Width stowed
5 ft 7 in
Height stowed
6 ft 9 in
Platform size
4 ft 1 in x 2 ft 9 in
Widest Point
15 ft
Jib - length
4 ft 3 in
Tire size
ST 225 / 75 R15
